Lightweight, versatile, and easy to use, Trilogy ventilators are designed for use in the home, hospital and alternative care sites and provide invasive and noninvasive ventilator support for a wide range of adult and pediatric patients.  View more

Product Order Request

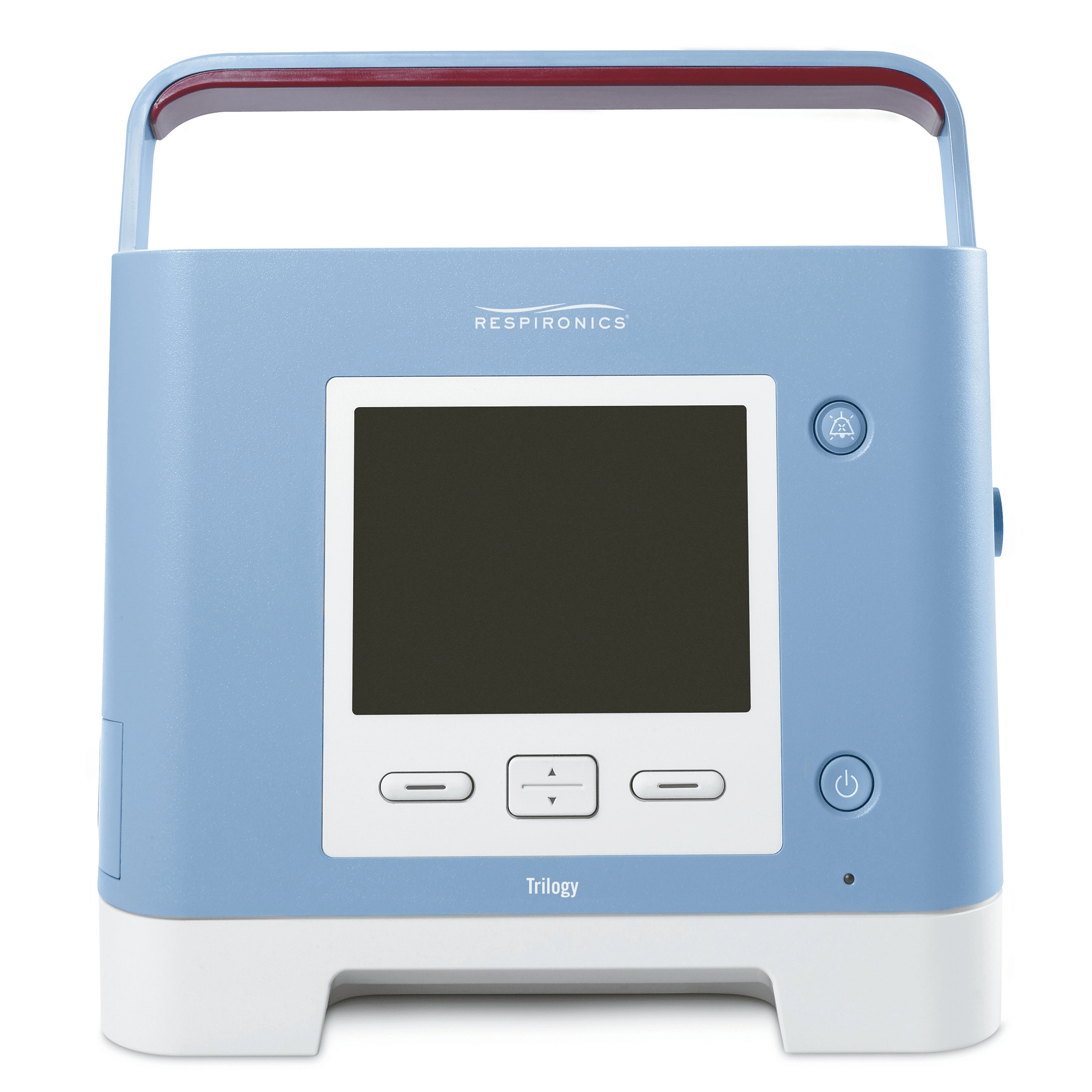

Light, versatile and easy-to-use, that’s the Trilogy100 portable ventilator at its essence. With its lightweight and proven technology, Trilogy100 makes invasive and non-invasive treatment less complicated for a wide range of adult and pediatric patients.

Keeping Care Teams in the Know
Trilogy is now connected to Care Orchestrator, Respironics' HIPAA-compliant cloud-based patient management system. With the ability to transmit data wirelessly and remotely, Connected Trilogy helps providers deliver quality respiratory care, gain efficiencies, potentially avoid unnecessary home visits, improve care coordination, streamline workflow and prioritize patient needs.

Continuous Respiratory Support for Added Freedom and Mobility

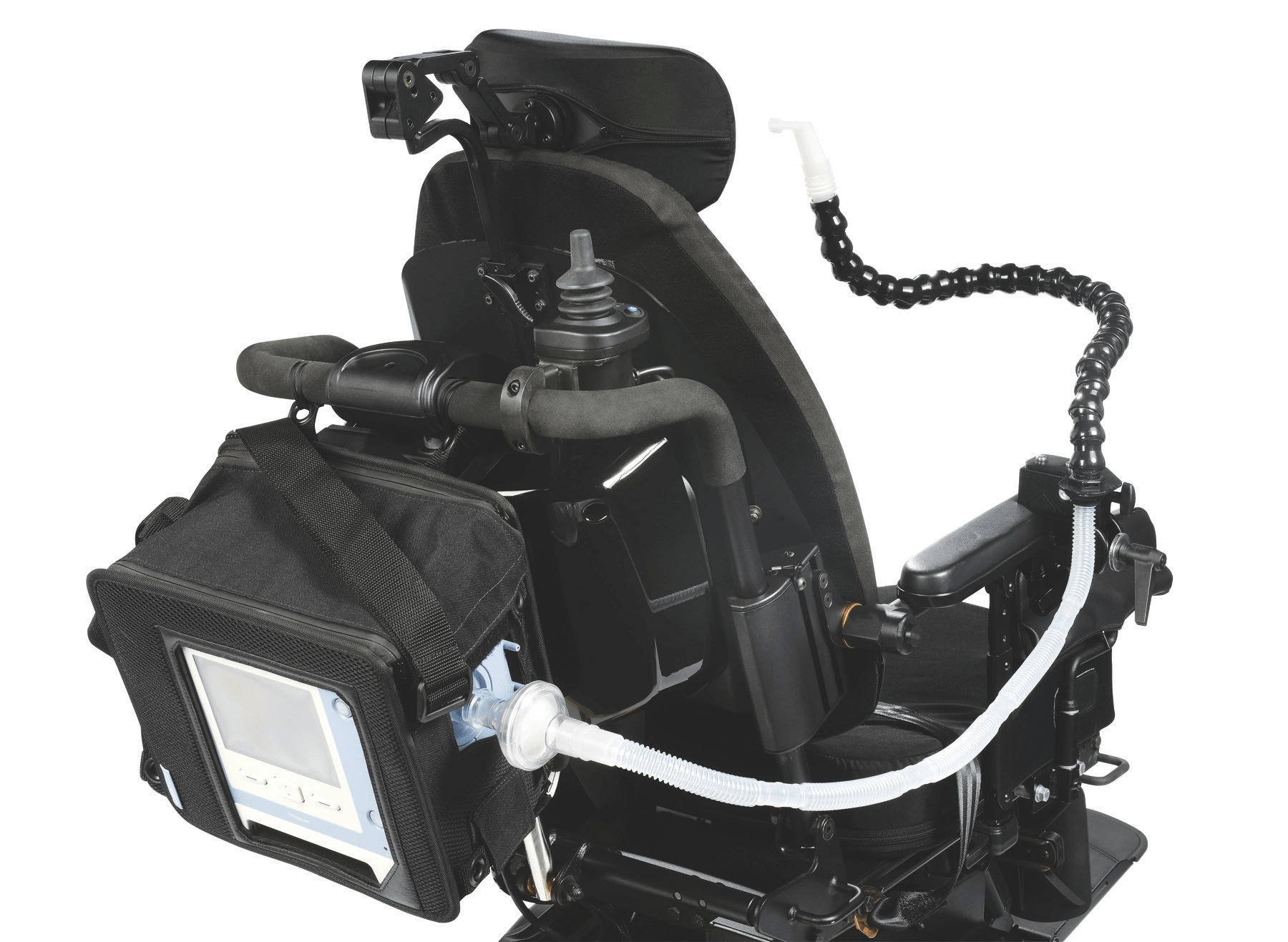

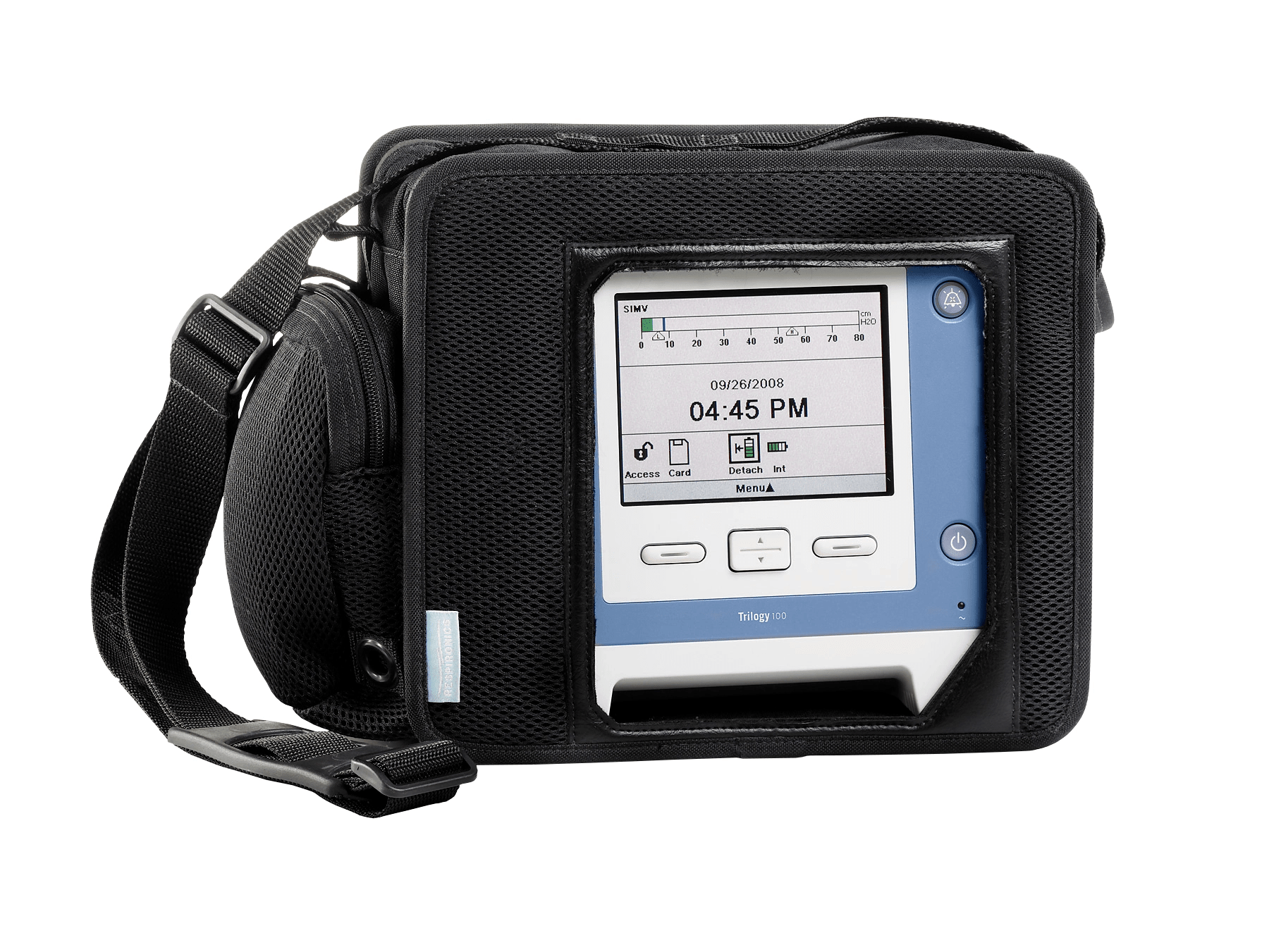

Trilogy provides respiratory support to meet your prescribed needs, up to 24 hours a day. Trilogy is portable with internal, hot-swappable detachable, and external batteries to provide greater freedom and mobility with continuous ventilation. The easy-to-use carry bag is wheelchair-mountable and designed so the screen is always visible.

Easy to Use and Adaptable for Your Patients’ Changing Needs

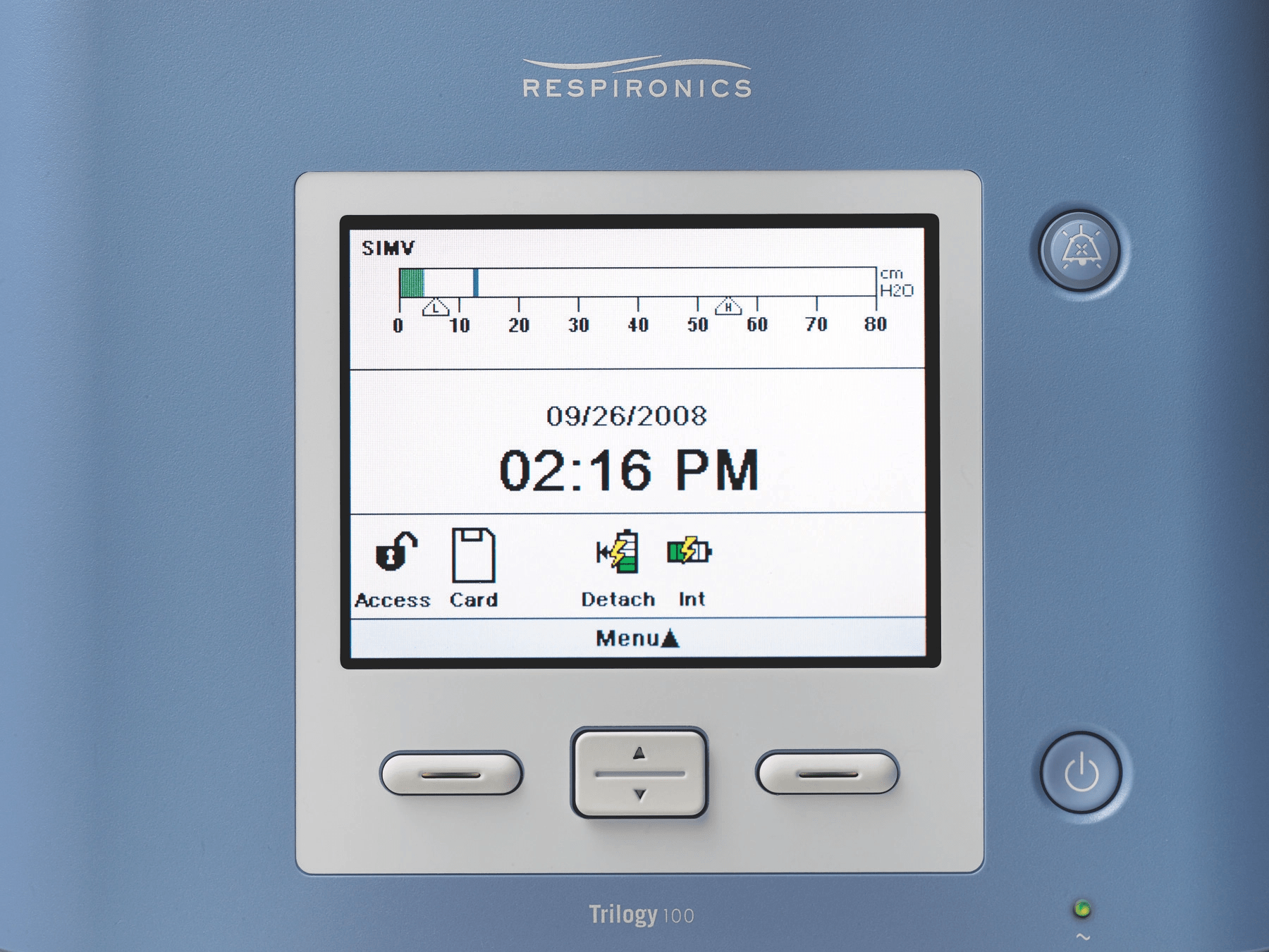

Trilogy is designed with easy-to-read and navigate screens, multiple Rx settings, and on-screen waveforms to help optimize treatment. Trilogy’s pressure- and volume-control features allow you to provide more types of therapy with one device. The ability to use multiple modes for patients who require varying levels of ventilation allows greater flexibility in care.

Adapting with Every Breath
AVAPS-AE--an auto-titration mode of non-invasive ventilation with multiple algorithms that work simultaneously--meets the changing needs of your patients. AVAPS automatically adjusts to breathing, while Auto EPAP proactively adjusts to the lowest effective pressure for peak comfort. Auto Backup delays a machine breath until the patient has exhaled to reduce air trapping.

Delivering On-Demand Ventilation
With no inspiratory effort required to trigger a breath, our unique ‘kiss’ trigger detects when a patient engages and disengages from the mouthpiece to deliver on-demand ventilation with the security of patient alarms.

When Sensitivity is Needed Most
This adaptive algorithm automatically adjusts the triggering and cycling of the ventilator, while compensating for leaks. Digital Auto-Trak’s capability contributes to the patient’s synchrony and comfort, without requiring manual adjustments. The Sensitive Auto-Trak setting provides an enhanced triggering response for patients with minimal respiratory effort.

Enhance Patient Mobility and Care with Trilogy Accessories
From power options and circuit adapters, to reporting software and alarms, Trilogy’s array of accessories helps give patients and families more freedom and mobility while maintaining effective treatment.

The Support and Training You Need
The innovative technology of the Trilogy family sets it apart from the rest. The support, service, and upkeep behind all of it keep it there, including 24/7 clinical support, educational training resources for both you and your patients and extended warranties and maintenance plans.










Specifications

Prod Spec Prod Spec Value
Dimensions 6.6" L x 11.2" W x 9.3" H
Weight 5 kg (11 lb)
Circuit Types Active with PAP; passive
Volume Modes AC; SIMV (w/PS); CV; AC-MPV
Pressure 4 to 50 cm H₂O
PEEP/EPAP for Active Circuits 0 to 25 cm H₂O
CPAP for Passive Circuits 4 to 20 cm H₂O
PEEP for Passive Circuits 4 to 25 cm H₂O
Pressure Support Differential 0 to 40 cm H₂O
Ventilation Types Pressure and Volume
Pressure Modes CPAP; S; S/T; T; PC-SIMV (w/PS);PC-MVP; AVAPS-AE
IPAP 4 to 50 cm H₂O
PEEP/EPAP for Passive Circuits 4 to 50 cm H₂O
PEEP for Active Circuits 0 to 25 cm H₂O
PEEP for Passive Circuits 4 to 20 cm H₂O
APNEA Rate Alarm Off; 10 to 60 sec
High Tidal Volume Alarm Off; 50 to 2000 ml
High Minute Ventilation Alarm Off; 1.0 to 99 l/min
High Respiratory Rate Alarm Off; 4 to 80 BPM
Low Respiratory Rate Alarm Off; 4 to 80 BPM
Circuit Disconnect Alarm Off; 5 to 60 sec
Low Tidal Volume Alarm Off; 40 to 2000 ml
Low Minute Ventilation Alarm Off; 0.2 to 99 l/min
Respiratory Rate 0 to 80 BPM
Vte/Vti 0 to 2000 ml
Peak Inspiratory Flow 0 to 2000 l/min
Mean Airway Pressure 0 to 99 cm H₂O
I:E Ratio 9.9:1 to 1:9.9
Minute Ventilation 0 to 99 l/min
Leak Rate 0 to 2000 l/min
Peak Inspiratory Pressure 0 to 99 cm H₂O
% Patient Triggered Breaths 0 to 100 %
  • Able to display waveforms on screen allowing clinicians to check patient triggering, cycling and synchrony
  • Sensitive Auto-Trak provides an enhanced triggering response for patients with minimal respiratory effort
  • Inline nebulizer treatments can be performed with nuisance alarms minimized
  • Building on patented AVAPS technology, AVAPS-AE and Adjustable AVAPS automatically adjust to changing patient needs
  • AVAPS-AE combines AVAPS,Auto EPAP and Auto backup rate
  • Adjustable AVAPS allows the clinician to control the speed at which pressure will change
  • AVAPS-AE, a bi-level therapy mode that automatically adjusts Expiratory Positive Airway Pressure (EPAP)
  • AVAPS-AE automatically adjusts EPAP to maintain a patent airway
  • Monitors delivered tidal volume and adjusts pressure support accordingly to provide the average target tidal volume
  • AVAPS-AE has the ability to maintain a backup breath rate based on the patient's own spontaneous breathing rate
